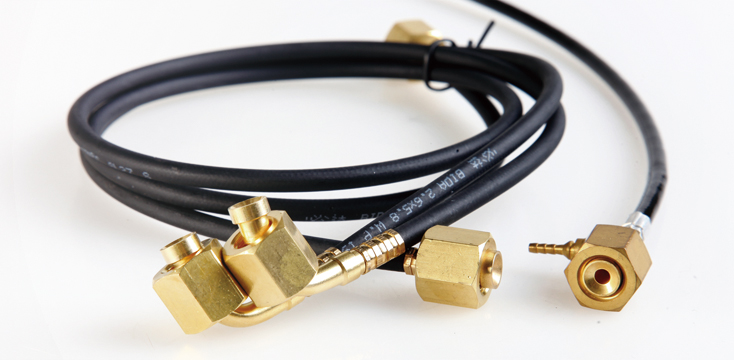

Thermoplastic Capillary Hose

The thermoplastic flexible capillary hose provides quick and easy connection to the pressure switches, gauges, oil return circuits and oil level equalization in air – conditioning and refrigeration systems.

Feature

> High flexibility

> Superior vibration absorption and noise reduction

> No brazing, flaring and bending

> Extremely low permeation rate

Material

> Inner tube material: thermoplastic nylon

> Reinforcing material: polyester fiber of high tensile strength

> Cover material: thermoplastic nylon

Description

Product Description

Capillary Tubes

Provide a quick and easy connection to components like pressure switches, gauges, oil return circuits and oil leveling in air conditioning and refrigeration systems
No need for brazing, flaring or bending
Essential noise reduction and vibration absorption
Excellent impermeability

SPECIFICATIONS:

Inner Diameter 2 mm
Tolerances 0.1 mm
Bending Radius 10 mm
Max Allowable Pressure 800 PSI
Working Temperature 120˚C
Min/Max Allowable Temperature -40 to 130˚C

Fittings and Accessories

Available in any combination of 1/4″ or 3/8″ brass SAE flare straight or 90° angel fittings.

Straight Insert With nut

90* Insert With nut

Copper Gasket

Straight Insert

Nut
